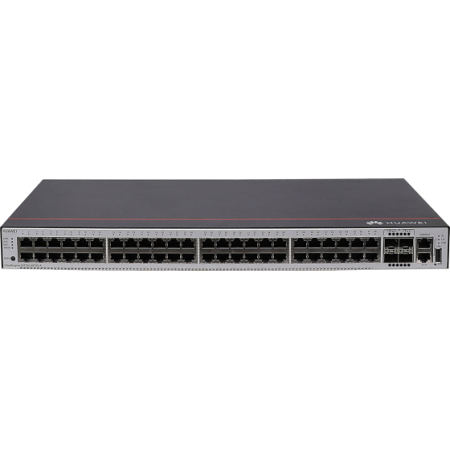

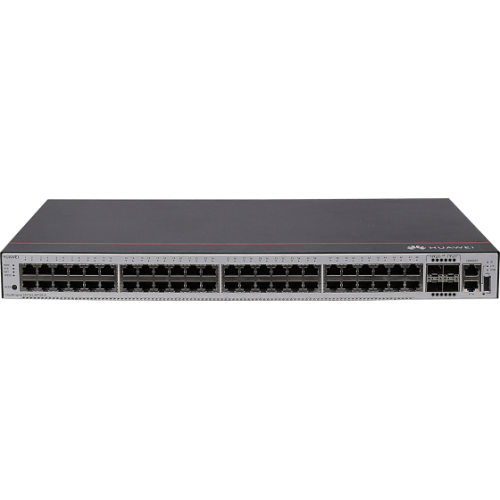

[S5735-L48T4S-A] Huawei Switch 48*10/100/1000BASE-T ports, 4*GE SFP ports, AC power

Physical specifications

Dimensions (H x W x D)

43.6 mm x 442 mm x 220 mm

Chassis height 1 U
Chassis weight (including packaging)

4.42 kg
Fixed port GE Base-T port 48
GE SFP port 4
10GE port NA
Management port Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory
Hardware: 512 MB, of which 306 MB is available for users

Power supply system

Power supply type Built-in AC
Rated voltage rang

100 V AC to 240V AC, 50/60 Hz

Maximum voltage range

AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz

High-voltage DC input: 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)

Maximum input current

2A
Maximum power consumption of the device

53 W

Power consumption in the case of 30% traffic load1

37 W
Power consumption in the case of 100% traffic load1

46 W
Reliability
MTBF (year)2 46.36
MTTR (hour) 2.59
Availability > 0.99999
