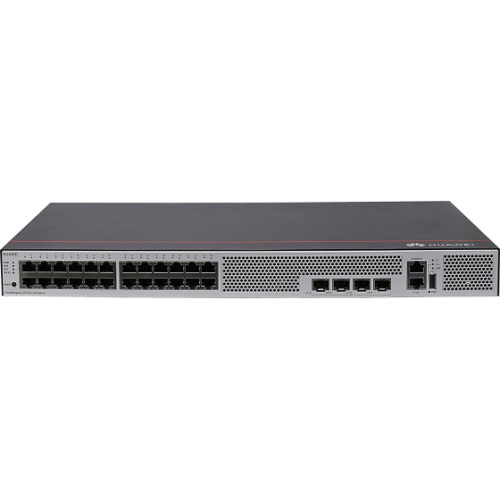

[S5735-L24P4S-A] Huawei Switch 24*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power

Physical specifications

Dimensions (H x W x D)

43.6 mm x 442 mm x 220 mm

Chassis height 1 U
Chassis weight (including packaging)

4.31 kg
Fixed port GE Base-T port 24 (PoE+)
GE SFP port 4
10GE port NA
Management port Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory
Hardware: 512MB, of which 306MB is available for users

Power supply system

Power supply type Built-in AC
Rated voltage rang

100 V AC to 240V AC, 50/60 Hz

Maximum voltage range

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

High-voltage DC input: 190 V DC to 290 V DC (meeting 240 V high voltage DC certification)

Maximum input current

6 A
Maximum power consumption of the device

53 W (without PD) 451 W (with PD, PD power consumption of 380 W)

Power consumption in the case of 30% traffic load1

39 W
Power consumption in the case of 100% traffic load1

44 W
Reliability
MTBF (year)2 92.2
MTTR (hour) 1.3
Availability > 0.99999
