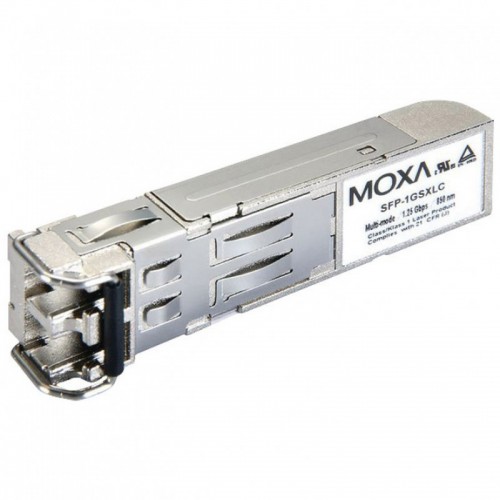

[SFP-1GSXLC] Moxa SFP module with 1 1000BaseSX port with LC connector for 300m/550m transmission, 0 to 60°C operating temperature

Specifications
Part Number: SFP-1GSXLC
Product Type: SFP-1G Series
Product: SFP module with 1 1000BaseSX port with LC connector for 300m/550m transmission, 0 to 60°C operating temperature
Ethernet Interface
Ports: 1
Connectors: Duplex LC connector
Transceiver Type: Multi-Mode
Fiber Cable Type: OM1, OM2
Typical Distance: 300m @ OM1, 550m @ OM2
Wavelength
Typical (nm): 850
TX Range (nm): 830 to 860
RX Range (nm): 770 to 860
Optical Power
TX Range (dBm): -4 to -9.5
RX Range (dBm): 0 to -18
Link Budget (dB): 8.5
Dispersion Penalty (dB): 4.3 @ OM1, 3.6 @ OM2
Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)
Power Parameters
Power Consumption: Max. 1 W
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 176°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: CE, FCC, TÜV, UL 60950-1
Maritime: DNV-GL
