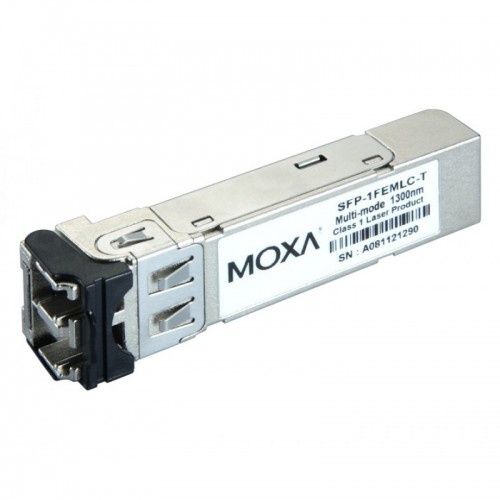

[SFP-1FEMLC-T] Moxa SFP module with 1 100Base multi-mode, LC connector for 2/4 km transmission, -40 to 85°C operating temperature

Specifications
Part Number: SFP-1FEMLC-T
Product Type: SFP-1FE Series
Product: SFP module with 1 100Base multi-mode, LC connector for 2/4 km transmission, -40 to 85°C operating temperature
Ethernet Interface
Ports: 1
Connectors: Duplex LC connector
Transceiver Type: Multi-Mode
Fiber Cable Type: OM1/OM2
Typical Distance: 2 km
Wavelength
Typical (nm): 1310
TX Range (nm): 1280 to 1340
RX Range (nm): 1100 to 1650
Optical Power
TX Range (dBm): -8 to -18
RX Range (dBm): -3 to -32
Link Budget (dB): 14
Dispersion Penalty (dB): 2
Power Parameters
Power Consumption: Max. 1 W
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: CE, FCC, TÜV, UL 60950-1
Maritime: DNV-GL
