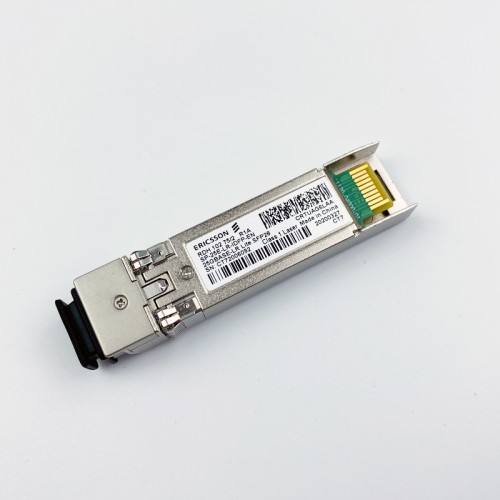

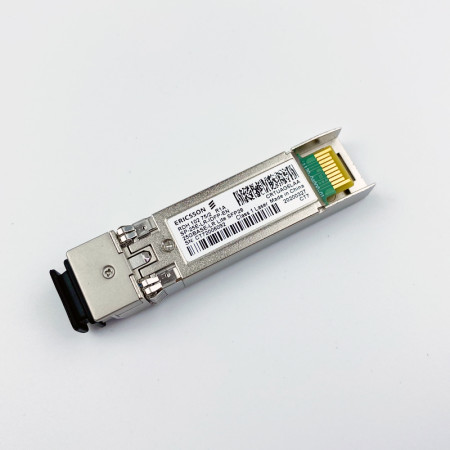

[RDH10275-2] Ericsson RDH10275/2 25GBASE-LR Lite SFP28 1310nm 2km DOM Transceiver Module SP-25E-LR-IDFP-EN

Features

Support CPRI wireless and 25GBASE-LR application
Support multi-rate for both 10Gps and 25Gbps
Up to 2km transmission on SMF
1310nm FP laser and PIN receiver
SFI high speed electrical interface
2-wire interface with integrated Digital Diagnostic monitoring
SFP+ MSA package with duplex LC connector
Single +3.3V power supply
Power consumption lower than 1.2W
Operating case temperature: -40~+85°C

Specifications

Manufacturer: Ericsson
Part Number: RDH10275/2
MPN: SP-25E-LR-IDFP-EN
Form Factor: 25G LR Lite
Data Rate: 25.78125 Gb/s
Transmitter: FP
Receiver: PIN
Wavelength (nm): 1310
Reach (km): 2
Temperature Range: Industrial
