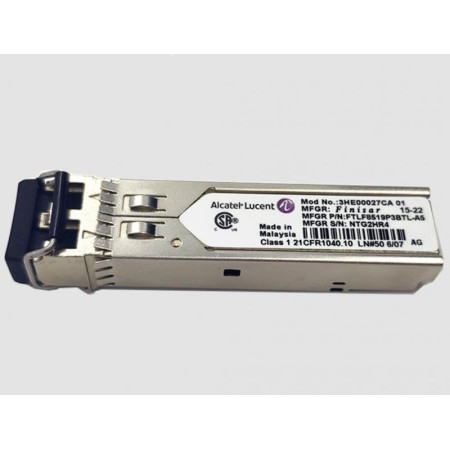

[3HE00027CA] Alcatel-Lucent 1000BASE-SX SFP Transceiver Module

Specifications

Manufacturer: Alcatel-Lucent
Part Number: 3HE00027CA
Form Factor: SFP
Data Rate: 1.25Gb/s
Wavelength: 850 nm
Fiber Type: MMF
Max Distance: 550 m
Optical Components: VCSEL/PIN
Transmitter Power: -9 ~ -3 dBm
Extinction ratio: > 9 dB
Receiver Sensitivity: < -18 dBm
Receiver Overload: > 0 dBm
Connector: LC Duplex
Digital Diagnostic Monitoring: Yes
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Weight: 0.025 kg
Applications
1x Fiber Channel, Switch to Switch Interface
Gigabit Ethernet, Switched Backplane Applications
Router/Server Interface, Other Optical Links
Compliance
IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS
