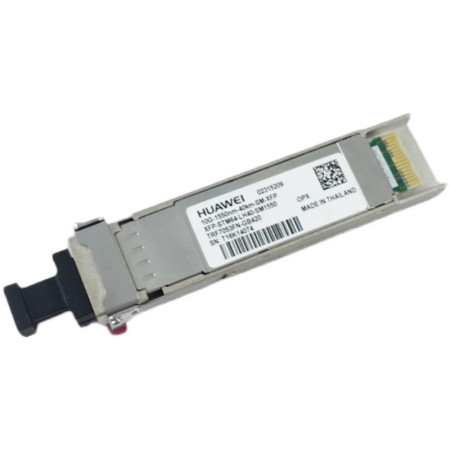

[02315209] Huawei XFP-STM64-LH40-SM1550 Optical Transceiver, XFP, 10G, Single-mode Module (1550nm, 40km, LC)

Basic Information

Module name: XFP-STM64-LH40-SM1550
Part Number: 02315209
Model: XFP-STM64-LH40-SM1550
Form factor: XFP
Application standard: 10GBASE-ER
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 10 Gbit/s
Target transmission distance [km]: Single-mode fiber: 40 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1550 nm
Maximum Tx optical power [dBm]: 2 dBm
Minimum Tx optical power [dBm]: -1 dBm
Minimum extinction ratio [dB]: 8.2 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -15 dBm
Overload power [dBm]: -1 dBm
