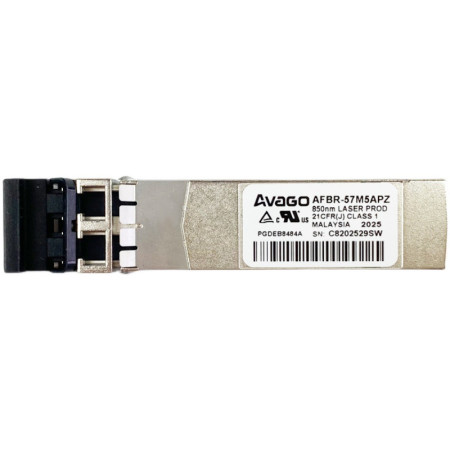

[AFBR-57M5APZ] Avago 850 nm, 2.125/1.0625 and 1.25 GBd Ethernet, 3.3 V, SFP Optical Transceiver

Features
Fully RoHS Compliant
Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
Real time monitoring of:
Transmitted optical power
Received optical power
Laser bias current
Temperature
Supply voltage
Wide temperature and supply voltage operation (-10°C to 85°C) (3.3 V ± 10%)
Transceiver specifications per SFP (SFF-8074i) MultiSource Agree-ment and SFF-8472 (revision 9.3)
– 2.125 GBd Fibre Channel operation for FC-PI 200-M5-SN-I and 200-M6-SN-I
– 1.0625 GBd Fibre Channel operation for FC-PI 100-M5-SN-I and 100-M6-SN-I
– 1.25 GBd operation for IEEE 802.3 Gigabit Ethernet 1000Base-SX
Link lengths at 2.125 GBd: 300m with 50µm MMF, 150m with 62.5µm MMF
Link lengths at 1.0625 GBd: 500m with 50µm MMF, 300 m with 62.5µm MMF
Link lengths at 1.25 GBd: 2 to 550m with 50µm MMF, 2 to 275 m with 62.5µm MMF
LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source technology
IEC 60825-1 Class 1/CDRH Class 1 laser eye safe

Applications
Fibre channel systems
Director class switches
Fabric switches
HBA cards
Disk and tape drive arrays

Specifications
Product: Transceivers
Wavelength: 850 nm
Data Rate: 2.125 GBd, 1.0625 GBd, 1.25 GBd
Fiber Type: Multimode
Rise Time: 150 ps
Operating Supply Voltage: 3.3 V
Minimum Operating Temperature: - 10 C
Maximum Operating Temperature: + 85 C
