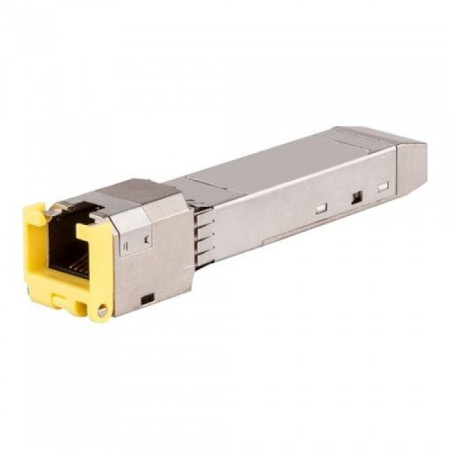

[ABCU-5710RZ] Avago 1000BASE-T RJ45 SFP Transceiver Module

Features
RoHS-6 Compliant (see Table 1)
Designed for Industry-Standard, MSA Compliant Small Form Factor Pluggable (SFP) Ports
Compatible with IEEE 802.3:2000
Custom RJ-45 connector with integrated magnetics
Link lengths at 1.25 Gbd: up to 100 m per IEEE802.3
Low power, high performance 1.25 Gbd SerDes integrated in module
Single +3.3 V power supply operation
Auto-negotiation per IEEE 802.3:2000 Clause 28 (Twisted Pair) and Clause 37 (1000BASE-X)
Compatible to both shielded and unshielded twisted pair category 5 cable
Configuration: ABCU-5710RZ: RX_LOS disabled
Rated for Commercial Temperature applications (0° - 70° C)

Applications
Switch to switch interface
Switched backplane applications
File server interface

Specifications
Form Factor: SFP
Max Data Rate: 1000Mbps
Max Cable Distance: 100m
Media: Cat 5e/6/6a
Connector: RJ-45
Power Consumption: <1W
DDM/DOM: Not Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Bit Error Ratio (BER): 1E-12
EMC (Electro Magnetic Compatibility): Supported
Protocols: IEEE Std 802.3 and 802.3ab, SFP MSA Compliant
